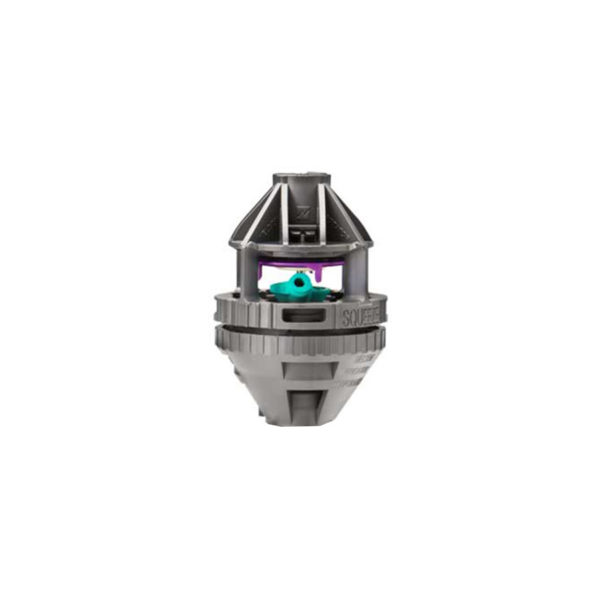

System Applications: Solid Set – Aluminum pipe, PVC, or Polyethylene. Permanent Set – Overhead irrigation for cooling. K-line and Pod Systems Portable Systems – The R2000WF in combination with the Mini Regulator Drain Check provides the ideal germination sprinkler for PVC or polyethylene systems. Superb uniformity is achieved with low application rates while drain-down problems are virtually eliminated. Overview The R2000WF Rotator – the “Windfighter” – consistently delivers higher uniformity than impact sprinklers. R2000WF Rotator The R2000WF forms a tight wind-penetrating stream that is systematically broken up by a diffuser, filling in the water pattern. Its sweeping action gently distributes water droplets to the ground preventing soil compaction. The R2000LP is a low-pressure version of the R2000WF. The R2000WF pressure range is 2.75-4.5 bar (40-65 PSI) while the R2000LP is 1.75-3.5 bar (25-50 PSI). Use the R2000WF and R2000LP for overhead irrigation, cooling, and environmental control for nursery crops, tree, vine, small fruit, and berry crops. It’s also perfect for revegetation, mining, and other specialty uses. Plate / Nozzle Selection Guide: Plate Options: Nozzle Options: Nozzle Flow Performance (LpH): Low Pressure WF Standard WF 1.75 BAR 2.0 BAR 2.5 BAR 3.0 BAR 3.5 BAR 2.75 BAR 3.0 BAR 3.5 BAR 4.0 BAR 4.5 BAR Purple Blue 201 217 242 266 286 254 266 286 306 328 Orange 245 261 294 323 350 308 323 350 375 401 Purple 290 311 347 380 412 365 380 412 442 469 Green Yellow 343 366 411 451 487 431 451 487 521 558 Green 389 413 463 509 550 487 509 550 590 626 Red Tan 453 485 544 597 647 574 597 647 695 737 Red 522 559 624 685 739 655 685 739 792 837 Gold Gold 668 716 795 869 940 834 869 940 1001 1060 Brown Brown 814 873 966 1062 1144 1016 1062 1144 1222 1295
