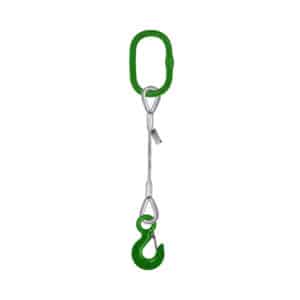

1 Leg Wire Rope Sling Master Link To Eye Sling Hook With Safety Latch

1 Leg Wire Rope Sling Master Link To Sling Hook With Safety Latch SWL AS PER BS 1290, ASME B30.9 & EN 13414-1 Key Features:- Safety Factor – 5:1 High Breaking Load. Excellent Life Time. Strong against Abrasion. It lasts longer than conventional wire rope slings. Structural Stability. Resistant to hazardous kinks. Excellent flexibility allows safer and easier handling of your valuable products. Quality is maintained through constant research. Custom-made slings for specific applications can be made to customer specifications. All types of end fittings as per your requirement. Specifications:- ItemCode(s) ROPE DIAMETER CAPACITY IN DIFFERENT SHAPE (SWL/WLL) Vertical Choker Basket mm Inch (Ton) (Ton) (Ton) SRASOHS-06 6 ¼ 0.5 0.4 1 SRASOHS-08 8 5/16 0.82 0.656 1.64 SRASOHS-09 9 1 0.8 2 SRASOHS-10 10 3/8 1.3 1.04 2.6 SRASOHS-11 11 1.5 1.2 3 SRASOHS-12 12 15/32 1.8 1.6 3.6 SRASOHS-13 13 ½ 2.1 1.68 4.2 SRASOHS-14 14 35/64 2.5 2 5 SRASOHS-16 16 5/8 3.3 2.64 6.6 SRASOHS-18 18 45/64 4.1 3.28 8.2 SRASOHS-19 19 ¾ 4.6 3.68 9.2 SRASOHS-20 20 25/32 5.1 4.08 10.2 SRASOHS-22 22 7/8 6.2 4.96 12.4 SRASOHS-24 24 15/16 7.4 5.92 14.8 SRASOHS-26 26 1 8.6 6.88 17.2 SRASOHS-28 28 1-1/8 10 8 20 SRASOHS-32 32 1-1/4 13.1 10.48 26.2 SRASOHS-36 36 1-3/8 16.6 13.28 33.2 SRASOHS-38 38 1-3/8 18.5 14.8 37 SRASOHS-40 40 1-7/12 20.6 16.48 41.2 SRASOHS-42 42 1-5/8 22.6 18.08 45.2 SRASOHS-44 44 1-3/4 24.8 19.84 49.6 SRASOHS-48 48 1-7/8 29.5 23.6 59 SRASOHS-52 52 2 34.8 27.84 69.9 SRASOHS-56 56 2-1/4 40.2 32.16 80.4 SRASOHS-60 60 2-23/64 46.2 36.96 92.4 SRASOHS-64 64 2-1/2 54.8 43.84 109.6 SRASOHS-71 71 2-13/16 66.6 53.28 133.2 SRASOHS-76 76 3 76.5 61.2 153 SRASOHS-83 83 3-1/4 89.6 71.68 179.2 SRASOHS-89 89 3-1/2 101 80.8 202 SRASOHS-103 103 4 129 103.2 258 * Customizable Lengths are available depending on customer requirements in both meter and feet. * Whereas Standard Lengths: 1,2,3,4,5,6,7,8,9,10,11,12 meter Please Contact Us for your inquiry! Precautions & FAQs
