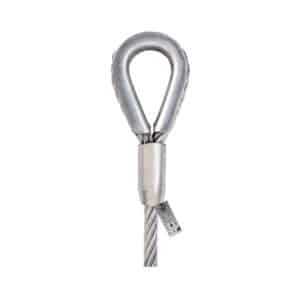

One Side Hard Thimble Eye Wire Rope Sling: Thimble Eye And Plain End

One Side Hard Thimble Eye Wire Rope Sling The One-Side Hard Thimble Eye Steel Wire Rope Sling with a Thimble Eye and Plain End is engineered for robust lifting and rigging applications. Featuring a reinforced thimble eye, this sling enhances load stability and extends the lifespan of the wire rope. SWL AS PER BS 1290, ASME B30.9 & EN 13414-1 Key Features:- Safety Factor – 5:1 High Breaking Load. Excellent Life Time. Strong against Abrasion. It lasts longer than conventional wire rope slings. Structural Stability. Resistant to hazardous kinks. Excellent flexibility allows safer and easier handling of your valuable products. Quality is maintained through constant research. Custom-made slings for specific applications can be made to customer specifications. All types of end fittings as per your requirement. Specifications:- ItemCode(s) ROPE DIAMETER CAPACITY IN DIFFERENT SHAPE (SWL/WLL) Vertical Choker Basket mm Inch (Ton) (Ton) (Ton) SRA-STS-06 6 ¼ 0.5 0.4 1 SRA-STS-08 8 5/16 0.82 0.656 1.64 SRA-STS-09 9 1 0.8 2 SRA-STS-10 10 3/8 1.3 1.04 2.6 SRA-STS-11 11 1.5 1.2 3 SRA-STS-12 12 15/32 1.8 1.6 3.6 SRA-STS-13 13 ½ 2.1 1.68 4.2 SRA-STS-14 14 35/64 2.5 2 5 SRA-STS-16 16 5/8 3.3 2.64 6.6 SRA-STS-18 18 45/64 4.1 3.28 8.2 SRA-STS-19 19 ¾ 4.6 3.68 9.2 SRA-STS-20 20 25/32 5.1 4.08 10.2 SRA-STS-22 22 7/8 6.2 4.96 12.4 SRA-STS-24 24 15/16 7.4 5.92 14.8 SRA-STS-26 26 1 8.6 6.88 17.2 SRA-STS-28 28 1-1/8 10 8 20 SRA-STS-32 32 1-1/4 13.1 10.48 26.2 SRA-STS-36 36 1-3/8 16.6 13.28 33.2 SRA-STS-38 38 1-3/8 18.5 14.8 37 SRA-STS-40 40 1-7/12 20.6 16.48 41.2 SRA-STS-42 42 1-5/8 22.6 18.08 45.2 SRA-STS-44 44 1-3/4 24.8 19.84 49.6 SRA-STS-48 48 1-7/8 29.5 23.6 59 SRA-STS-52 52 2 34.8 27.84 69.9 SRA-STS-56 56 2-1/4 40.2 32.16 80.4 SRA-STS-60 60 2-23/64 46.2 36.96 92.4 SRA-STS-64 64 2-1/2 54.8 43.84 109.6 SRA-STS-71 71 2-13/16 66.6 53.28 133.2 SRA-STS-76 76 3 76.5 61.2 153 SRA-STS-83 83 3-1/4 89.6 71.68 179.2 SRA-STS-89 89 3-1/2 101 80.8 202 SRA-STS-103 103 4 129 103.2 258 * Customizable Lengths are available depending on customer requirements in both meter and feet. * Whereas Standard Lengths: 1,2,3,4,5,6,7,8,9,10,11,12 meter Please Contact Us for your inquiry! Precautions & FAQs
