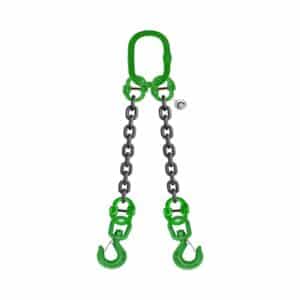

Two Leg Bridle Chain Sling With Swivel Sling Hook

Two-leg Bridle Chain Sling With Swivel Sling Hook Safe and Secure (SSTC) offers a leg Chain Sling W/ SWIVEL Sling Hook  JB Lifting components are made from special quenched and tempered alloy steel, a guarantee for very high strength, low weight, high wear resistance and long life. All Lifting components are uniformly marked with equivalent chain size, grade, manufacturer’s designation, and name for identification. The Grade 80 Chains offer not only value for money but also quality and longevity of service. Meets and Exceeds Standards: EN818, ANSI B30.9, and OSHA specifications. Material: Alloy Steel Grade: 80 Safety Factor: 4:1 Proof Load: 2.5 times of SWL Construction: Quenched & Tempered Finish: Self  Black Coloured Key Features: Easy to assemble wherever needed. Higher Breaking Load than Polyester and Steel Wire Rope. Strong against Cutting and Abrasion. Resistant to chemical and ultraviolet (UV) radiation. Excellent Lifetime: Last longer than conventional Polyester and Steel Wire Rope. Working Temperature up to 200o C.         Easy Identification after 1 meter the link is marked with JBL. All fittings are also marketed with SWL, CE, and JBL marks. Resistant to hazardous kinks. Quality is maintained through constant research. All parts are easy to inspect and fully repairable and replaceable. Custom-made slings for specific applications can be made to customer specifications. Chain Sleeves and Corner protectors are also available. All types of end fittings as per your requirement. Specifications:- ItemCode(s) Diameter of Rope Capacity at different angle (SWL/WLL) WEIGHT Chain Weight 0-45 Degree 45-60 Degree mm Inch Ton Ton kg/m kg SCA-DOSWHK-07 7 9/32 2.12 1.5 3.61 0.79 SCA-DOSWHK-08 8 5/16 2.8 2 6.1 1.38 SCA-DOSWHK-10 10 3/8 4.25 3.15 11.51 2.2 SCA-DOSWHK-13 13 1/2 7.5 5.3 19.39 3.1 SCA-DOSWHK-16 16 5/8 11.2 8 27.2 5.63 SCA-DOSWHK-20 20 3/4 17 12.5 37.03 8.6 SCA-DOSWHK-22 22 7/8 21.2 15 71.23 10.2 SCA-DOSWHK-26 26 1 30 21.2 124.37 14.87 SCA-DOSWHK-32 32 1.1/4 45 31.5 150.45 21 * Standard Lengths: 1,2,3,4,5,6,7,8,9,10,11,12 meter. * whereas customizable Lengths for two-leg chain sling w/ swivel sling hook are also available depending on customer requirements. Please Contact Us for your inquiry! Precautions & FAQs
